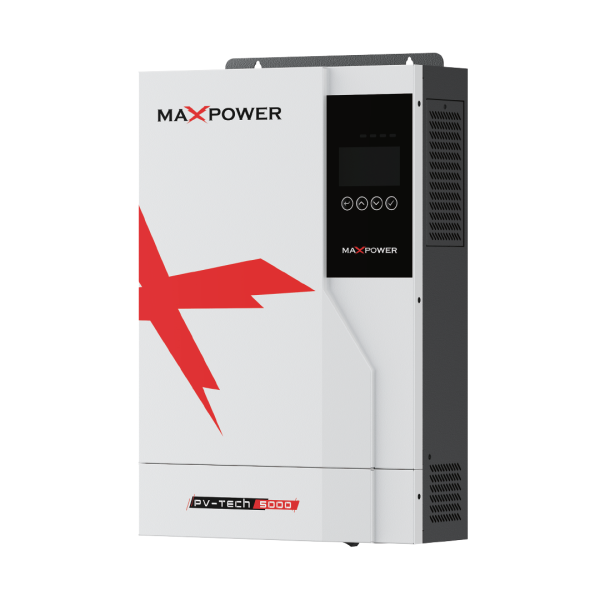

PV Tech 5000

Description

AC Input
Rated Input Voltage (VAC): 208 / 220 / 230 / 240; L + N + PE
Frequency (Hz): 50 / 60 (Auto Adaptive)
AC Output
Rated Capacity (kW): 4
Surge Power (kVA): 8
Voltage (VAC): 208 / 220 / 230 / 240
Power Factor (PF): 1
Frequency: 50/60Hz±0.1%
Switch Time (ms): 10 (normal mode) / 10 (UPS mode)
Wave Form: Pure Sine Wave
Overload Capacity (Battery Mode):
60s@102%~110% load
10s@110%~130% load
3s@130%~150% load
0.2s@>150% load
Max. Efficiency (Battery Mode): 92.7%@24VDC
Parallel Quantity: NA
Charger (PV / AC)
Solar Charger Type: MPPT
Max PV Input Current / Input Power: 18A / 5000W
MPPT Range @ Operating Voltage (VDC): 40~450
Max PV Open Circuit Voltage (VDC): 500
Max PV Charge Current (A): 100
Max AC Charge Current (A): 100
Max. Charge Current (PV + AC) (A): 100
Battery
Rated Voltage (VDC): 24
Floating Charge Voltage (VDC): 27
Overcharge Protection (VDC): 30.5
Battery Type: Lithium and Lead-acid
Interface
HMI: LCD
Interface: RS485 / RS232 / USB / Dry Contact
Monitoring: WiFi (Optional)
General Data
Ingress Protection: IP21
Operating Temperature: -10°C ~ 50°C
Relative Humidity: 5% ~ 95% (Non-condensing)
Storage Temperature: -15°C ~ 60°C
Net Weight (kg): 6.4
Dimensions (WHD): 490306115mm (without bracket)
Max. Operating Altitude: 4000m (Derating above 1000m)
