Description

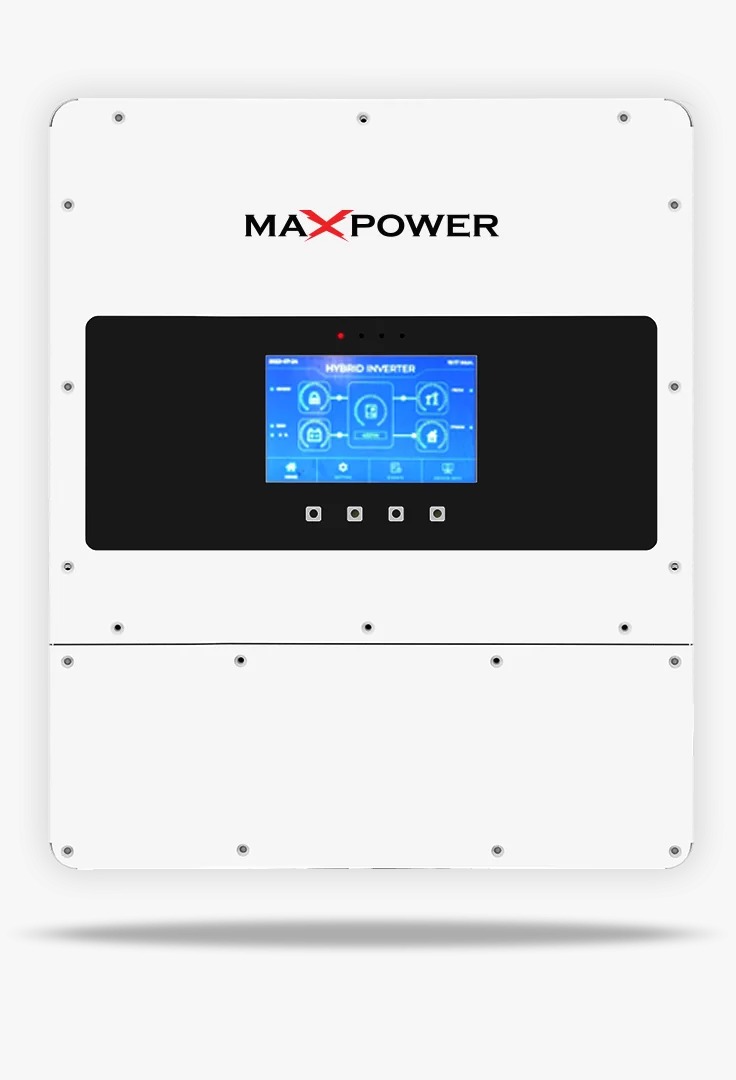

The Voltas 14K-H4 Three-Phase Hybrid Inverter is engineered to optimize solar energy usage and provide reliable power solutions for industrial and commercial applications. This robust inverter combines advanced technology with high efficiency, making it an ideal choice for users seeking a dependable energy source.
Key Features:
Battery Input: This product is compatible with lead-acid or Li-Ion batteries and operates within a 40-60 V battery voltage range.
Max. Charge Current: 250 A and Max. Discharge Current: 250 A.
Charging Strategy: Utilizes a 3-stage charging curve with optional external temperature sensors for enhanced performance.

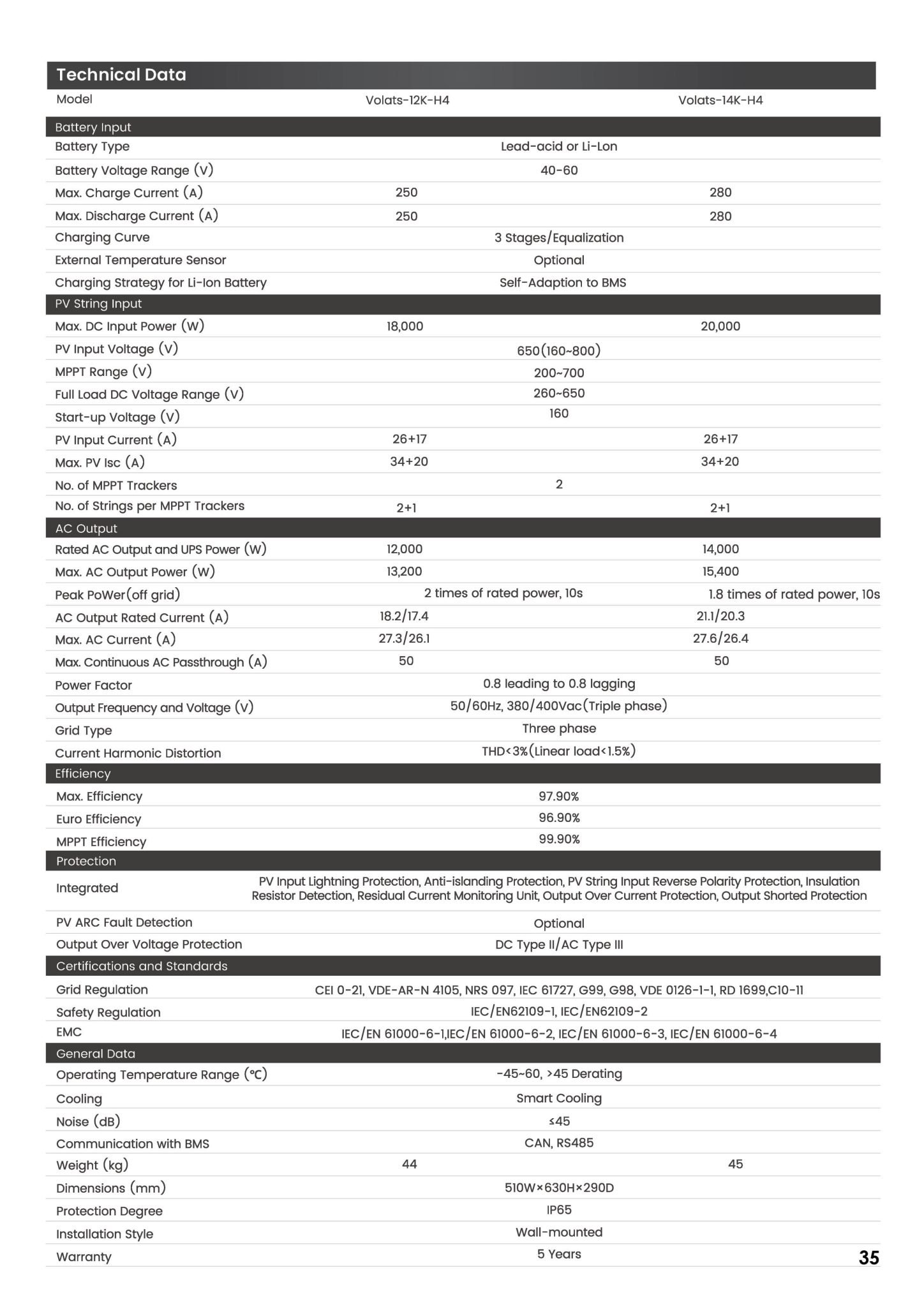

Technical Specifications:
Max. PV Input Power: 20,000 W
PV Input Voltage: 650 V (range: 160-800 V)
MPPT Voltage Range: 200-700 V
Startup Voltage: 160 V
No. of MPPT Trackers: 2
No. of Strings per MPPT: 2+1
AC Output:
Rated AC Output Power: 12,000 W (with max output of 13,200 W)
Peak Power (off-grid): 2 times of rated power for 10 seconds
Power Factor: 0.8 leading to 0.8 lagging
Output Frequency and Voltage: 50/60 Hz, 380/400 Vac (Three Phase)
Safety features include integrated PV ARC fault detection, output over-voltage protection, and more, ensuring comprehensive protection. With a maximum efficiency of 97.90% and an IP65 rating, the Voltas 14K-H4 delivers reliable performance in various environments. Backed by a 5-year warranty, this inverter is designed for durability and efficiency, making it a smart investment for sustainable energy solutions.
Step-by-Step Instructions for Voltas Hybrid Inverter Setup – Check Out the Links Below!
